Tsim thiab tsim muaj peev xwm

Peb lub tuam txhab boasts robust tsim thiab tsim muaj peev xwm, cog lus rau xa lub tshiab, npaum, thiab high-zoo ob chav kem cnc milling tshuab rau peb cov neeg muas zaub. Peb pab neeg tsim qauv muaj cov kws tshaj lij engineers thiab cov neeg tsim qauv siv cov software tsim tshiab thiab cov cuab yeej los xyuas kom meej tias txhua yam khoom ua tiav kev ua haujlwm zoo thiab zoo nkauj. Peb cov chaw tsim khoom tau nruab nrog cov cuab yeej siv hluav taws xob hauv lub xeev, ua kom muaj txiaj ntsig zoo thiab raug ntau lawm thaum ua kom muaj kev sib luag thiab zoo hauv txhua yam khoom.

Khoom Zoo

Peb muab qhov tseem ceeb ntawm cov khoom zoo tshaj txhua yam. Adhering nruj me ntsis rau thoob ntiaj teb zoo tswj systems, peb meticulously tswj txhua theem los ntawm raw khoom procurement mus rau manufacturing thiab zaum kawg tshuaj ntsuam xyuas cov khoom. Peb cov khoom tau dhau los soj ntsuam nruj thiab tau txais ntau daim ntawv pov thawj, ua kom muaj kev ua tau zoo thiab kev ntseeg siab hauv ntau qhov chaw siv.

Technical specification

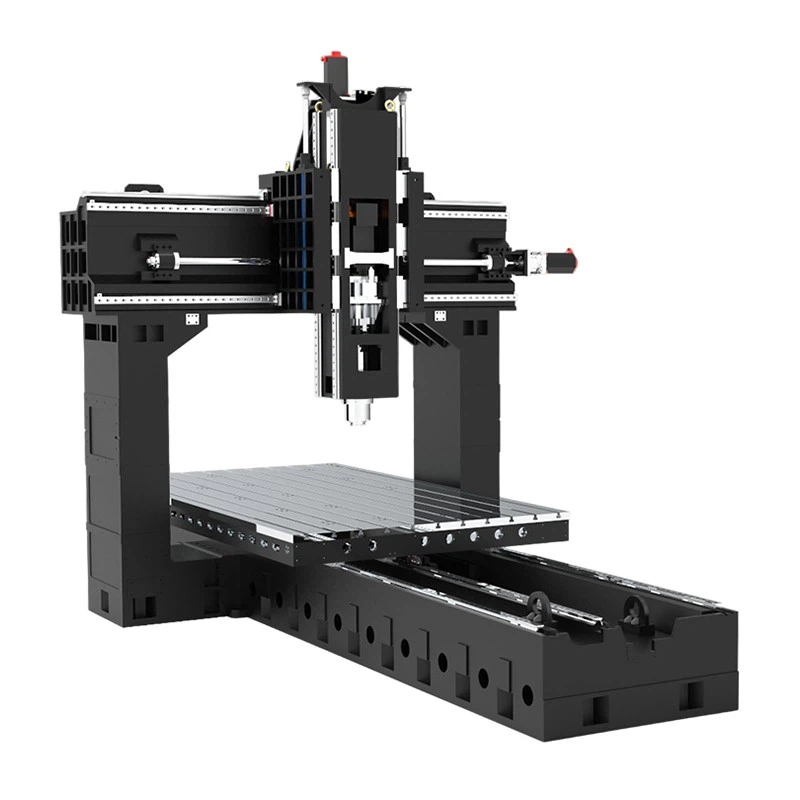

Tshuab hom (ob kem cnc milling tshuab)			chav tsev	GB-XX18 series
Workbench
Rooj cheeb tsam			mm	2000/2500/3000*1500
T-Slot (loj * ntau * qhov sib nrug)			mm	922160
Max load ntawm workbench			kg	5000/7000/10000
Taug kev
X-axis taug kev			mm	2100/ 2600/3100
Y-axis taug kev			mm	1800
Z-axis taug kev	Plaub-xaim cov menyuam khiav T-ram square ram (hard rail)			800/1000/1200/1500
Qhov deb ntawm spindle qhov ntswg mus rau lub rooj ( iav hom)	Z-axis taug kev =800		mm	250-1050
	Z-axis taug kev =1000		mm	250-1250
	Z-axis taug kev =1200		mm	250-1450
	Z-axis taug kev =1500 square ram(hard rail)		mm	250-1750
Ob chav kab sib nrug (qhov dav dav)			mm	1800
Thawj axis
Spindle zog (Nruam / 30min ntsuam xyuas)			Kw	18.5/22 22/26 30/37
Spindle ceev (hlau rail spindle taub hau)	ob theem iav hom		rpm ua	4500
Spindle taper qhov			-	BT-50/BBT-50/CAT-50
Pub
Txiav pub tus nqi			mm/min	1-12000
Tus nqi noj ceev			m/min	X/Y/ Z: 24/20/17
X/Y/Z feed motor		Lub zog (Kw)	Kw	X / Y / Z: 4/4/7 los yog 7/4/7
Precision
Positioning raug		Xa mus rau ISO230-2	mm	±0.013/ Tag nrho stroke
Kev tsim tawm raug		Xa mus rau ISO230-2	mm	±0.003
Tsis siv neeg hloov cuab yeej
Cov cuab yeej cia muaj peev xwm		Vertical tool hloov	pcs	40T/60T/90T/120T
Qhov siab tshaj qhov ntsuas qhov hnyav			kg	20
Tsis siv neeg hloov cuab tam loj (tag nrho cov cuab yeej / cov cuab yeej khoob)			mm	∅125/∅250
Shank hom			-	BT-50/BBT-50/CAT-50
Lwm yam
Kev thov hluav taws xob			kva	45
Barometric xav tau			kg/cm²	8
Tshuab hnyav			kg	21000/24000/27000
Pem teb (L * W * H)			mm	6800/7800/880046504700

Peb yuav ua li cas?

Txais Advanced Technology:Siv cov kev hloov tshiab tshiab hauv tshuab cuab yeej cuab tam los txhim kho qhov tseeb, kev ua tau zoo, thiab kev tsim khoom. Qhov no suav nrog kev sib koom ua ke automation, CNC (Computer Numerical Control) systems, thiab Kev Lag Luam 4.0 cov kev daws teeb meem kom muaj kev sib tw thiab txaus siab rau cov neeg siv khoom xav tau.

Txhim Kho Cov Neeg Ua Haujlwm Kev Txawj Ntse:Muab cov kev cob qhia tsis tu ncua thiab kev txhim kho kom ntseeg tau tias cov neeg ua haujlwm cov kev txawj ntse tam sim no nrog kev nce qib hauv kev siv tshuab thiab cov qauv kev lag luam. Cov neeg ua haujlwm txawj ua haujlwm yog qhov tseem ceeb rau kev tswj hwm kev tsim khoom zoo thiab txhawb nqa kev tsim kho tshiab.

Siv Eco-Friendly Practices:Siv cov kev coj ua kom ruaj khov hauv kev tsim khoom, xws li kev txo cov pov tseg, cov khoom siv rov ua dua tshiab, thiab kev siv hluav taws xob tsawg, los txhawb lub luag haujlwm ntawm ib puag ncig.

Ua Ntej Cov Neeg Siv Khoom Sib Koom:Koom nrog cov neeg siv khoom kom nkag siab txog lawv cov kev xav tau thiab cov teeb meem. Muab cov kev daws teeb meem tshwj xeeb thiab kev txhawb nqa tom qab muag tshwj xeeb. Kev sib raug zoo ntawm cov neeg siv khoom muaj zog tuaj yeem ua rau rov ua lag luam thiab kev xa mus zoo.

Tswj kom zoo thiab ua raws:Tswj nruj nruj ntsuas ntsuas kom ntseeg tau tias tag nrho cov khoom ua tau raws li lossis dhau cov qauv kev lag luam thiab cov neeg siv khoom xav tau. Tsis tas li ntawd, ua raws li tag nrho cov kev cai thiab cov ntawv pov thawj cuam tshuam los lav cov khoom muaj kev nyab xeeb thiab kev ntseeg siab.
