Tuam txhab ua hauj lwm
Kev Qhia Tshwj Xeeb
|

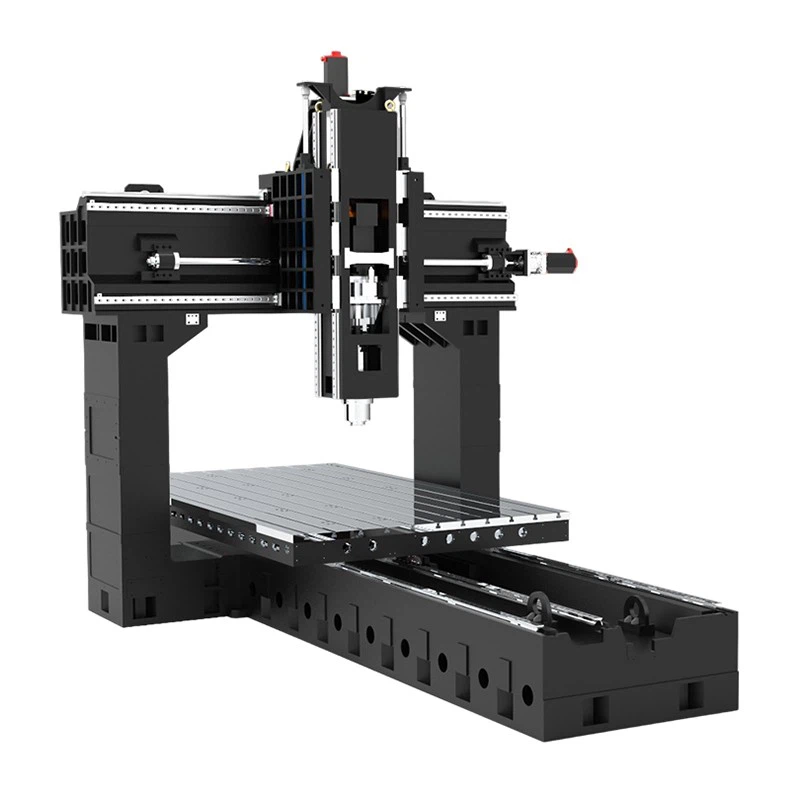

Tshuab Hom(hnyav zog cnc milling tshuab) |
ib yam |
GD-XXX33ib yam dhau ib yam |
|
|
Kev ua hauj lwm |
|||
|
Rooj thaj tsam |
lub hli |
5000/6000/8000/10000*3000 |
|
|
T-Slot (Qhov loj me * kom muaj nuj nqis * spacing) |
lub hli |
14*28*200 |
|
|
Qhov siab tshaj plaws thauj khoom ntawm workbench |
kg |
24000/28000/32000/35000 |
|
|
Kev yos teb chaws |
|||
|
X-axis Mus Ncig |
lub hli |
5100/6100/8100/10100 |
|
|
Y-Axis Mus Ncig |
lub hli |
3300 |
|
|
Z-Axis Mus Ncig |
Plaub-hlau cov menyuam khiav T-ram square ram (nyuaj rail) |
800/1000/1200/1500 |
|
|
Qhov deb ntawm ntxaiv qhov ntswg rau rooj (iav hom) |
Z-Axis Mus Ncig =800 |
lub hli |
250-1050 |
|
Z-Axis Mus Ncig =1000 |
lub hli |
250-1250 |
|
|
Z-Axis Mus Ncig =1200 |
lub hli |
250-1450 |
|
|
Z-Axis Mus Ncig =1500 square ram (nyuaj rail) |
lub hli |
250-1750 |
|
|
Ob Chav Sab Nraum (Qhov Rooj Dav) |
lub hli |
3300 |
|
|
Tus thawj xib fwb axis |
|||
|
Ntxaiv Hwjchim (Nruam / 30min Kev Ntsuas) |
Kw |
22/26 30/37 |
|
|
Ntxaiv ceev (hlau rail ntxaiv lub taub hau) |
Ob Theem Iav Hom |
rpm |
4500 |
|
Ntxaiv Taper Qhov |
- |
Bt -50 / bbt -50 / miv -50 |
|
|
Kev pub mov |
|||
|
Txiav Pub Tus Ntaus |
mm / min |
1-10000/ 1-10000/ 1-8000/ 1-6000 |
|
|
Fast Feed |
m / min |
X / Y / Z: 10/10/15 lossis 10/10/15 lossis 10/10/15 lossis 10/15/10 |
|
|
X / Y / Z pub tsav |
Lub Hwj Chim (KW) |
Kw |
X/Y/Z: 9/7/7 |
|
Kev nplig |
|||
|
Tso rau qhov tseeb |
Xa mus rau ISO 230-2 |
lub hli |
{{{{{{0}}}} {} ± 0.015 / tag nrho cov hlab mob lossis ± 0.015 / tag nrho cov hlab ntsha tawg |
|
Kev tsuj dua qhov tseeb |
Xa mus rau ISO 230-2 |
lub hli |
±0.003 |
|
Tsis Siv Neeg Tool Hloov |
|||
|
Cuab Yeej Cia Muaj Peev Xwm |
Ntsug Tool Hloov |
pcs |
40T/60T/90T/120T |
|
Qhov hnyav Tax hnyav |
kg |
20 |
|
|
Tsis Siv Neeg Tool Hloov Khoom Loj (Tas nrho cov cuab yeej / khoob cuab tam) |
lub hli |
∅125/∅250 |
|
|
Shank Hom |
- |
Bt -50 / bbt -50 / miv -50 |
|
|
Lwm |
|||
|
Kev Siv Hluav Taws Xob |
kva |
70/80/80/80 |
|
|
Barometric thov |
kg / cm² |
8 |
|
|
Tshuab qhov hnyav |
kg |
58000/68000/80000/90000 |
|
|
Pem teb cheeb tsam (l * w * h) |
lub hli |
12800/14800/16800/18800*8000*5200 |
|
Txhim Kho thiab Kev Txais
1. Xa mus rau qhov chaw nres nkoj lossis lub Hoobkas.
2. Tus neeg yuav ua lub luag haujlwm npaj cov cuab yeej tsim nyog, nqa cov khoom siv thiab hluav taws xob nqa, tshuab hluav taws xob thiab cov roj ua rau siv rau hauv cov tshuab.
3. Lub hauv paus ntawm lub tshuab no yuav tsum tau ua, thiab cov qhua tuaj noj mov yuav tsum npaj lub hauv paus raws li cov duab kos tau muab los ntawm peb lub tuam txhab ua ntej xa cov tshuab.
1. Tus neeg yuav khoom tuaj yeem mus rau cov khoom tsim khoom lag luam rau kev lees txais ntawm lub tshuab (ntawm tus neeg yuav khoom tus nqi).
2. Tshawb xyuas cov kev ua haujlwm ntawm lub tshuab raws li kev xeem ntawv ntawm kev tsim cov khoom lag luam lossis lwm cov Qasi-xeem pom zoo los ntawm ob tog.
3. Tshuab Kev Ua Tau Zoo yog raws li lub Hoobkas qhov tseeb uas tau muab los ntawm peb lub tuam txhab lossis kev tshuaj ntsuam xyuas los ntawm cov qauv pom zoo los ntawm ob tog.
Z-Axis Tsim nta
1. Sab-dai plaub-hlau hlau hlau tau tiv thaiv kev cuam tshuam ntawm resonance thiab thermal hloov, yog li txhawm rau txhim kho qhov chaw nruj thiab muaj kev sib txig.
2. Z-axis ntawm peb cov dej num hnyav CNC milling tshuab yog sib npaug qhov hnyav ntawm lub taub hau ntxaiv lub taub hau tshwm sim los ntawm nws tus kheej qhov hnyav.
Vim li cas thiaj xaiv peb?
TEJ-RUG TSHUAB: Peb siv txoj kev nce qib tshiab hauv lub tshuab Tool thev naus laus zis, suav nrog cov kev daws teeb meem hauv lub zos-ntawm-art cnc thiab kev daws teeb meem. Qhov no ua kom meej meej, ua haujlwm, thiab kev ntseeg tau rau txhua cov khoom peb tsim khoom.
Kev Tshaj Tawm thiab Kev Paub: Nrog rau xyoo ntawm kev paub hauv kev lag luam, peb pab neeg ntawm cov kws tshaj lij kev txawj ntse thiab thev naus laus zis coj tsis muaj kev txawj ntse rau txhua qhov project. Peb tau mob siab rau xa cov kev daws teeb meem saum toj kawg nkaus ua kom tau raws li qhov xav tau tshwj xeeb ntawm peb cov neeg siv khoom.
Kev cog lus rau kev ua tau zoo: Zoo yog nyob ntawm txhua yam peb ua. Peb ua raws li kev nruj kev tswj cov txheej txheem zoo thiab ua raws li cov qauv kev lag luam kom ntseeg tau tias peb cov khoom raws qib siab tshaj plaws thiab kav ntev.
Cov qhua tuaj noj mov-centristMus cuag: Peb cov neeg muas zaub yog peb qhov tseem ceeb tshaj plaws. Peb ua haujlwm ze nrog txhua tus neeg siv los nkag siab txog lawv cov kev xav tau tshwj xeeb thiab muab cov kev daws teeb meem. Peb cov neeg siv khoom pabcuam tshwj xeeb thiab kev muag khoom tom qab kev muag khoom kom muaj kev txaus siab ntev thiab ua tiav.
Kev Ncaj Ncees thiab Kev Tsim Kho Tshiab: Peb tau cog lus rau kev coj ua kom ruaj khov thiab ua kom muaj kev hloov tshiab. Los ntawm kev txo cov khib nyiab, txuag lub zog, thiab nrhiav cov hauv kev tshiab los txhim kho peb cov txheej txheem tshiab thaum xa cov kev daws teeb meem.
